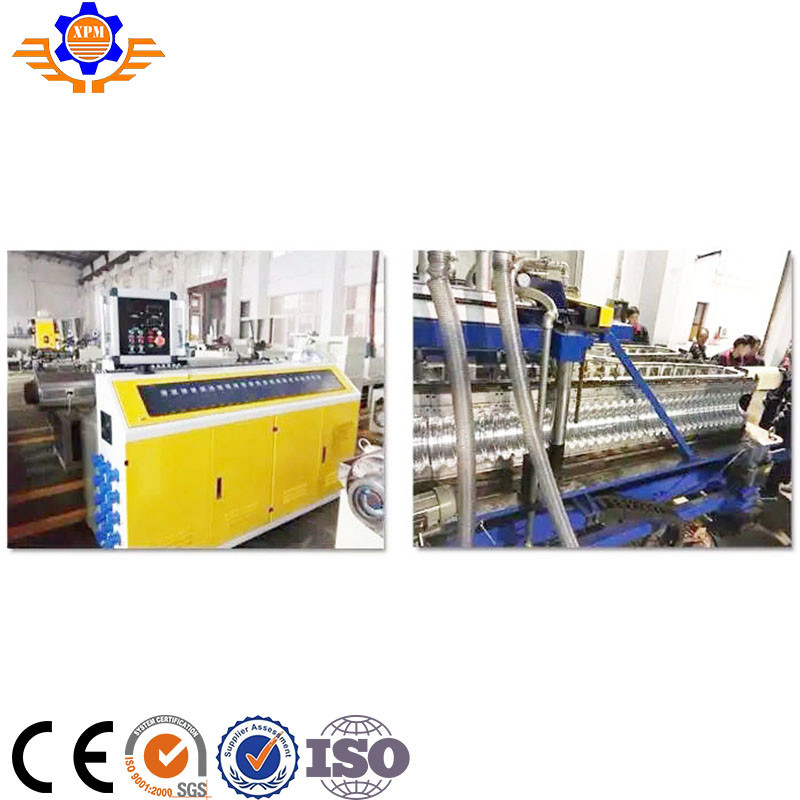

10m/Min Output Twin Screw PVC Pipe Extrusion Machine Double Wall Corrugated Pipe Machine

10m/Min Output Twin Screw PVC Pipe Extrusion Machine Double Wall Corrugated Pipe Machine

Advantages of PVC pipes:

1. Excellent in chemical corrosion, no rust;

2. With self-extinguishing and flame retardant;

3. Excellent in anti-aging, can be used 20years to 50 years between the temperature from subzero 15 to

60 degrees Celsius;

4. Wall is smooth, inner wall surface tension, it is difficult to form scale, the fluid transport capacity of

43.7% higher than the cast iron pipe;

5. The weight is light, easy to flaring, bonding, bending, welding, pipe installation workload is only 1 /

2 to the steel pipes, low labor intensity, short duration;

6. Good electrical properties of resistance, volume resistance of 1 to 3 x 105Ω.cm, a breakdown voltage

23 to 2kv/mm;

7. The toughness of PVC pipe is low, the linear expansion coefficient is high, operating temperature range

is narrow.

Application of PVC pipes:

1. Water supply, drainage pipelines in building;

2. Rainwater drainage pipelines in building;

3. Electrical wiring pipe in building;

4. Air conditioning condensate water systems.

5.drainage liquid gas and oil transportation

Water supply PVC Pipe Extrusion Line drainage liquid gas and oil transportation

1. Special structure design of screw and dies and convenience in changing mould blocks solve

the problem of easy-worn of screw and barral, as well as the difficulty in forming of plastic resin.

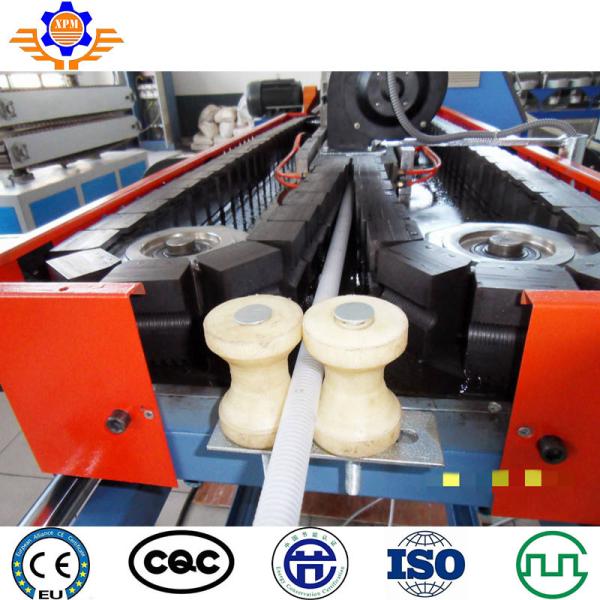

2. Corrugator adopts closed water cooling structure, closed forming blocks chain, and special design

of rail, which will make all blocks matching correctly, running stably . You even couldn’t see the

connecting line on the surface of pipe. Cooling water is cycling inside the corrugator, it will make the

cooling speed fast, so the production speed of pipe will be raised highly .

Meanwhile, the corrugator adopts building blocks design, we can use same basis structure but

different forming length of corrugator. The longer forming length of corrugator, the more output of

pipe . We can make different forming length corrugator according to different cusotmers’ needs.

Technical Parameter of PVC single wall corrugated pipe extrusion line

PVC Double Wall Corrugated Pipe Machine

10m/Min PVC Pipe Extrusion Machine

Double Wall Corrugated Pipe Production Line
